Aerial

Powerful and Productive

• Designed for high-volume operations

Spray or Spread

• 50–60 L spray tank, up to 7.4 gal/min flow rate
• 418 lb/min spreading rate with modular auger

Signal Stability

• Automated offline and terrain-following flight
• Adjustable waypoints, one-click return

All-Terrain Adaptability

• High-performance flight control system
• Handles 132 lb payload with precision

Customizable Application

• Dual or quad nozzle systems
• Droplet size: 20–320μm

Efficient Spraying

• 36-foot spray swath with 56" propellers

Field Operations

• Up to 70 acres per hour

Spreading Operations

• Granular spreading up to 418 lb/min
• Modular Design handles particles 0.04"–0.4" in size

Easy Maintenance

• Modular components for quick disassembly and cleaning

Heavy Payload

• 40 kg spraying
• 50 kg spreading

High Flow Rate

• Spraying 16 L/min
• Spreading 108 kg/min

Signal Stability

• Offline operations
• 2 km O3 Transmission
• Optional DJI Relay

All Scenario Adaptability

• Fully automatic and manual operation
• Orchard Mode
• Variable Rate Application

Multidirectional Obstacle Sensing

• Multidirectional Obstacle Avoidance
• Terrain Following up to 50°

Four Sprinkler Kit (Optional)

• Reverse Directional Spray During Flight
• 4-sprinkler spraying, flow rate 24 L/min

Field Operations

• 21 Hectares per hour

Orchard Operations

• 4 Hectares per hour

Spreading Operations

• 1,500 kg of granules per hour

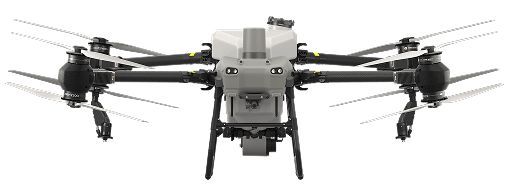

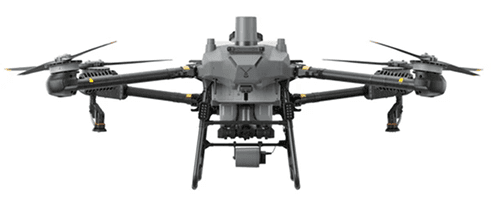

50 kg Payload

• 75 L max capacity and an expanded loading gate for quick refills

Smooth Spreading

• The torque of the spreader is doubled and the discharge hatch is enlarged to enable a flow rate up to 108 kg/min

Uniform Spreading

• DJI AGRAS T50's spiral channel spinning disk makes spreading more uniform

Low Rate Spreading

• You can also switch to small hopper gates to improve spreading accuracy with a low flow rate

Real-Time Weighing

• DJI AGRAS T50 is equipped with a weighing sensor which allows you to monitor the remaining payload in real time

Fast Disassembly and Cleaning

• The spreader can be quickly disassembled and cleaned for easy maintenance

Professional-Grade Performance

• Designed for industrial applications

Multi-Sensor Payload

• 4 × 48MP
• Wide, Medium Telephoto, Telephoto, Thermal

RGB camera

• 48 MP
• 1/1.3", 1/1.5" CMOS, up to 168mm equiv. focal length

Safe and stable

• Omnidirectional sensing + AI-powered operations
• 15km+ Transmission Distance

Precision imaging

• Laser rangefinder up to 1800m
• Centimeter-level accuracy

Efficient inspections & mapping

• Thermal imaging, Smart 3D Capture, AI-driven workflows

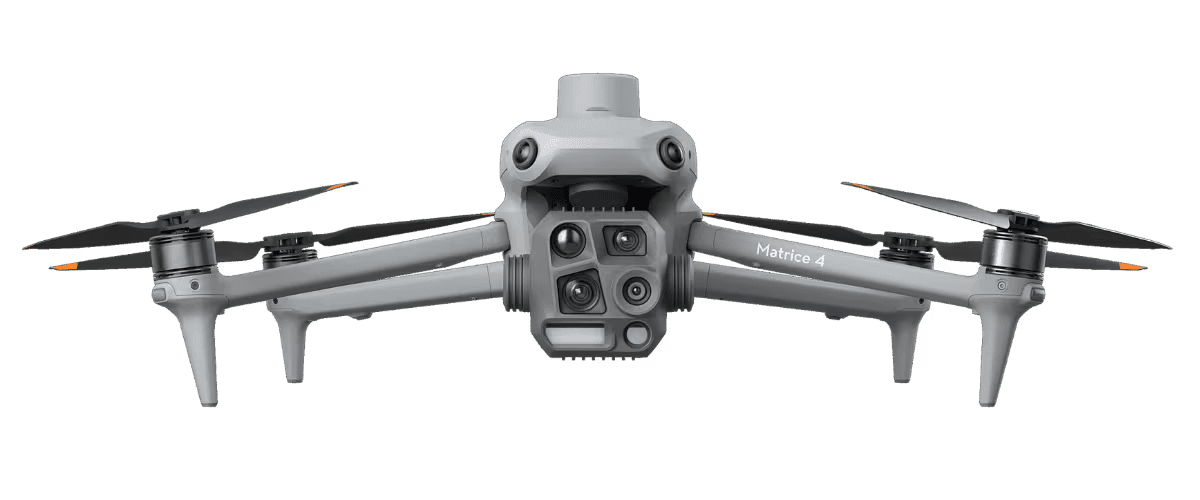

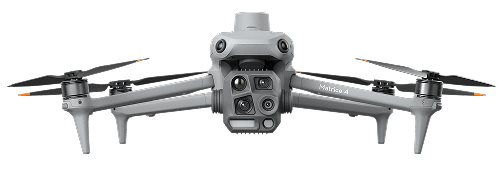

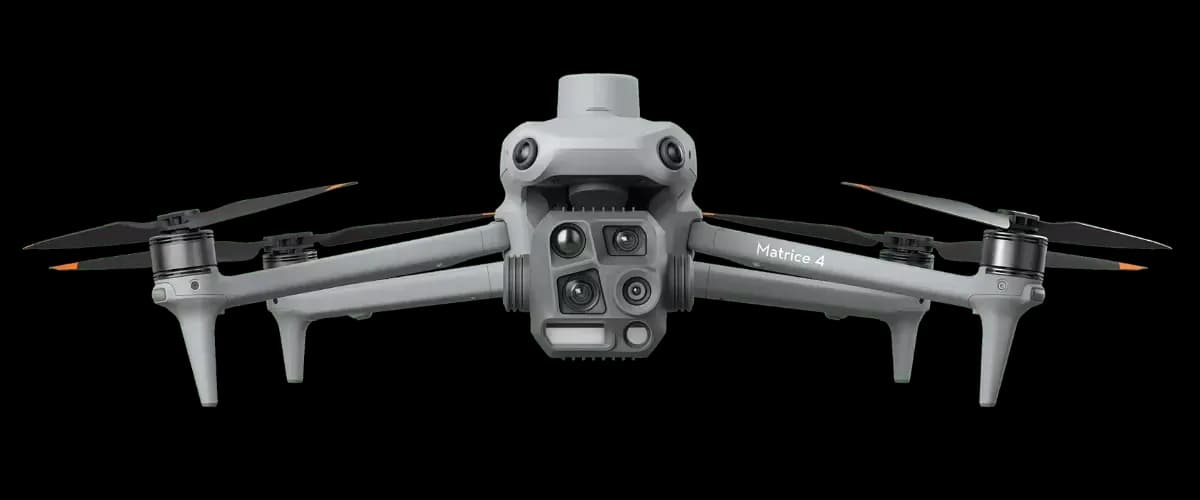

Professional-Grade Performance

• Designed for industrial applications

Multi-Sensor Strength

• Wide-Angle Camera: 48 MP 1/1.3″ CMOS, f/1.7 (~24 mm equivalent)
• Medium-Tele Camera: 48 MP 1/1.3″ CMOS, f/2.8 (~70 mm equiv.)
• Tele Camera: 48 MP 1/1.5″ CMOS, f/2.8 (~168 mm equiv.)
• Thermal Camera: Radiometric VOx sensor, 640 × 512 resolution, 12 µm pixel pitch, 30 Hz
• Built-in NIR Spotlight: ~6° FOV, aiding low-light operations

Zoom & Imaging

• Digital Zoom (Tele): 16× optical / up to 112× hybrid

Thermal Performance

• Wavelength Range: 8 µm–14 µm
• Temperature Measurement Range: High Gain – –20 °C to 150 °C; Low Gain – 0 °C to 550 °C
• Accuracy: High Gain – ±2 °C or ±2%; Low Gain – ±5 °C or ±3%
• Sensitivity: ≤ 50 mK @ F1.0
• Gimbal: 3-axis (tilt, roll, pan) with wide mechanical movement

Still & Video Modes

• Wide/Tele Photography: Up to 48 MP, with single, interval, Smart Shooting, and panorama (stitched up to 100 MP)
• Thermal Still: Up to 1280 × 1024 (with Super-Resolution); 640 × 512 standard, with interval timing options
• Video (RGB): 4K UHD (3840 × 2160) and FHD 1080p @ 30fps, H.264/H.265, up to 60 Mbps bitrate
• Video (Thermal): MP4; resolutions 1280 × 1024@30fps (super-res) or 640 × 512@30fps; bitrates from 5 to 12 Mbps depending on format

Laser Rangefinder

• Distance: Up to 1,800 m (1 Hz) on 20% reflective target; 600 m oblique; 1 m blind zone
• Accuracy: ±(0.2 m + 0.0015×D), ±0.3 m system error (1–3 m range)

AI & Mission Focus

• Integrated AI for detecting humans, vehicles, vessels; ideal for public safety and emergency response missions

Transmission & Positioning

• O4 Enterprise transmission with up to 25 km range (FCC), 1080p downlink, AES-256 encryption, local data mode

Aircraft Specs

• Takeoff Weight: ~1,219 g (standard), ~1,229 g (low-noise props); Max Takeoff: ~1,420–1,430 g
• Payload Capacity: ~200 g
• Dimensions (Folded): 260.6 × 113.7 × 138.4 mm; (Unfolded): 307 × 387.5 × 149.5 mm
• Speeds: Ascent 10 m/s; descent 6–8 m/s; horizontal up to 21 m/s (forward), 18 m/s (backwards), 19 m/s (sideways)

Flight Time

• Up to ~49 minutes (forward flight)

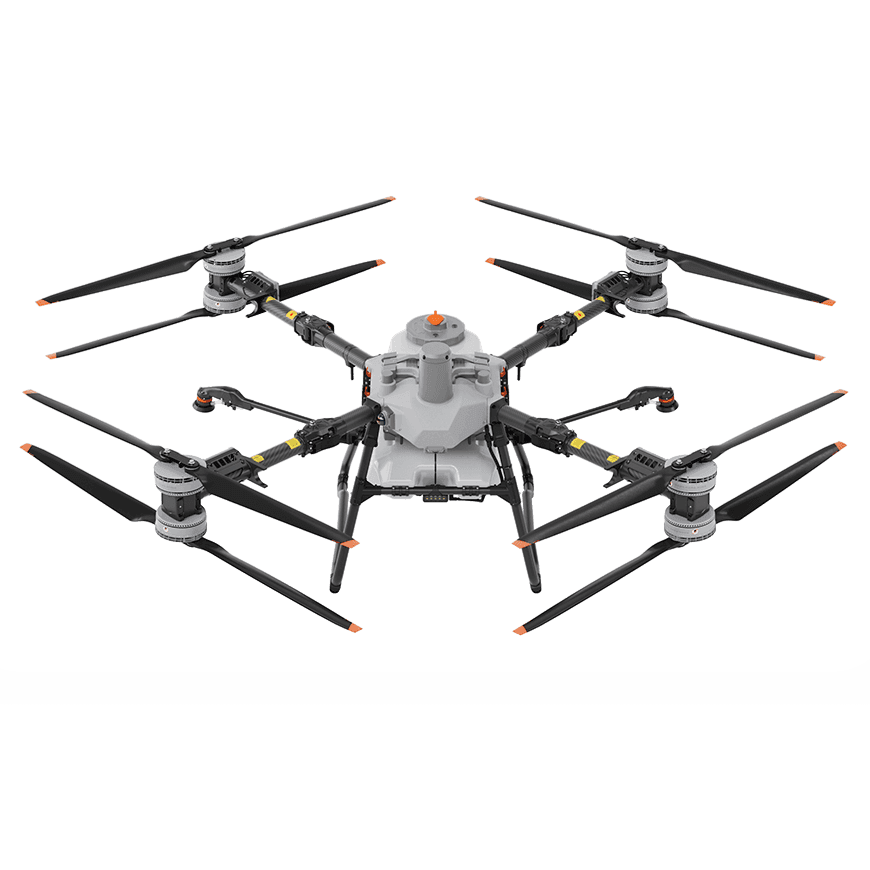

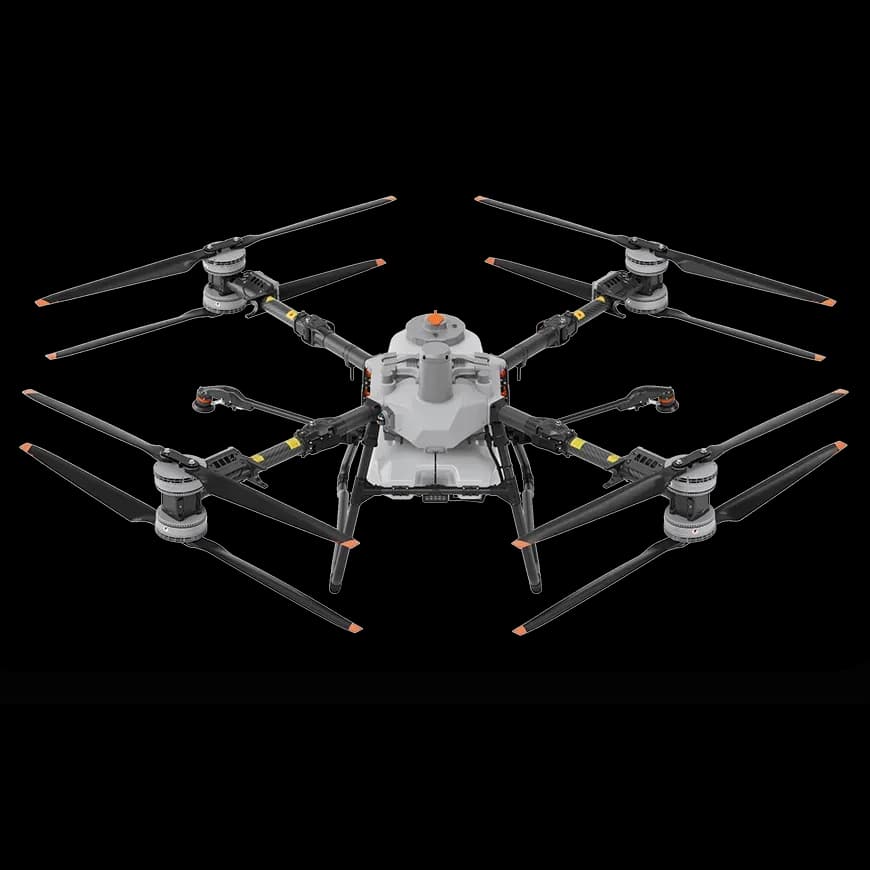

Heavy Payload & Multifunctionality

• Up to 100 kg (100 L tank) Spraying
• Up to 100 kg (150 L hopper) Spreading
• Up to 100 kg via 10 m tether Lifting

High Flow Rates

• 30 L/min (2 nozzles) or 40 L/min (4 optional nozzles) Spraying
• Up to 400 kg/min Spreading

Signal & Safety Systems

• Navigation & Stability: RTK/GNSS with centimeter-level accuracy, LiDAR, millimeter-wave radar, Penta-vision system, 360° obstacle sensing
• Redundancy: Continues to operate even if one of four arms fails

Multidirectional Obstacle Awareness

• Features: LiDAR, Penta-Vision, and millimeter-wave radar for comprehensive terrain-following and collision avoidance

Optional Upgrades / Features

• 4-nozzle spraying kit: Enables higher flow (40 L/min) and broader coverage
• Lift System: 10 m tether for carrying cargo, tools, supplies
• Fast Charging Batteries: DB2160 intelligent batteries recharge in 8–9 min via D14000iE charger

Field Operations (Efficiency)

• Efficiency: Up to 22 ha/hr in spray mode
• Flight Time: Typically 15–20 min; hovering up to 10 min with full payload
• Max Operating Speed: Around 20 m/s (≈72 km/h); other sources note 10 m/s in spraying mode
